02 / RR Series · Resistive + Reactive
Resistive + Reactive
Load Banks
Real power and reactive power together. RR-Series load banks apply combined kW + kVAR at a controllable lagging power factor, loading a generator or alternator exactly as the real world will — proving the engine, the AVR and the cooling under true conditions.
Overview
True load, at the
right power factor.
A purely resistive test proves only half the picture. Real generators feed motors, transformers and drives — inductive loads that draw reactive power and pull the power factor down. The RR-Series adds switchable inductive (kVAR) load to the resistive bank so the set is tested at its rated power factor, typically 0.8 lagging.
This exercises the prime mover, the alternator winding and the automatic voltage regulator together, exposing voltage regulation, transient response and thermal behaviour that a resistive-only test will never reveal. Capacitive (leading) reactive stages are available for testing under modern electronic loads.
- Resistive Elements
- Stainless-steel, helically-wound, fine-step
- Reactive Elements
- Switched iron-cored inductors (capacitive option)
- Power Factor
- 0.8 lagging standard, adjustable / leading option
- Protection
- Over-temperature, airflow, phase-loss, interlock
- Formats
- Wheeled · trailer · containerised
Product range
RR Series
ratings.
A representative selection of the standard RR-Series range. Power factor, voltage, reactive staging and enclosure format are configurable — bespoke ratings are engineered to order.
| Model | Real Power | Reactive Power | Power Factor | Voltage | Format |
|---|---|---|---|---|---|
| RR-100 | 100 kW | 75 kVAR | 0.8 lag | 400 V | Portable |
| RR-300 | 300 kW | 225 kVAR | 0.8 lag | 400–480 V | Wheeled |
| RR-500 | 500 kW | 375 kVAR | 0.8 lag | 400–690 V | Trailer |
| RR-800 | 800 kW | 600 kVAR | 0.8 lag | 400–690 V | Trailer |
| RR-1250 | 1.25 MW | 940 kVAR | 0.8 lag | 400–690 V | Containerised |

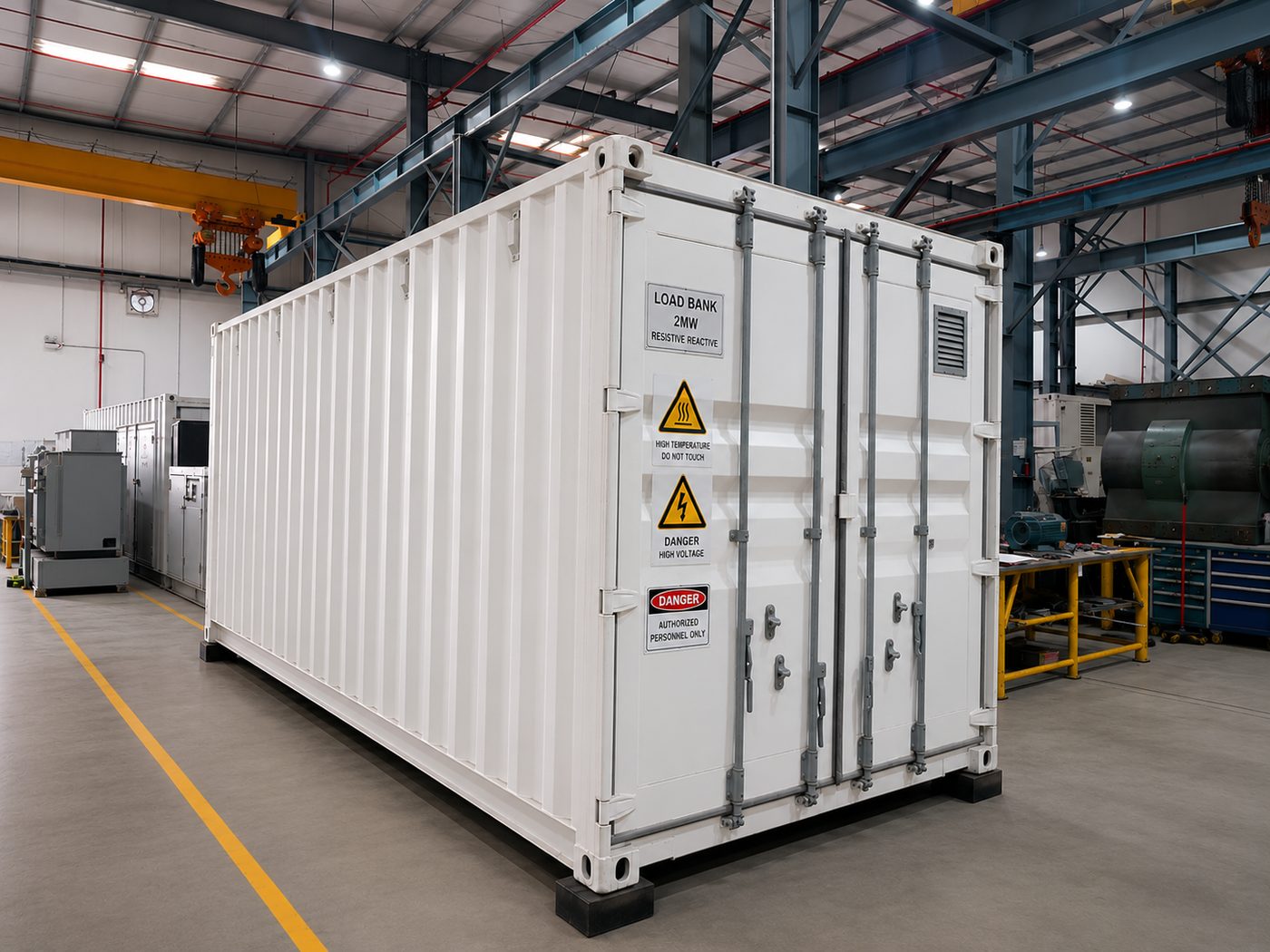

| RR-2000 | 2 MW | 1.5 MVAR | 0.8 lag | 400–690 V | Containerised |
| RR-2500 MV | 2.5 MVA | adj. | 0.8 lag | 3.3–11 kV | Containerised |
Representative range — figures configurable to order.
Engineering
Built into every unit.
Combined kW + kVAR
Independent control of real and reactive load for full-system testing.
Adjustable Power Factor
Set the test power factor from unity to 0.8 lagging, with a leading option.
Stainless-Steel Elements
Stable, repeatable resistive load with a long service life.
Switched Reactive Banks
Iron-cored inductors in selectable steps for precise kVAR.
Digital Control & Metering
kW, kVAR, kVA, PF, V, A and Hz with full test logging.
Remote & Automated
Handheld, PC and Modbus control with scripted load profiles.
Applications
Where RR-Series
earns its place.
Wherever a source must be proven under realistic, reactive load — not just real power.
Continue the range
Related families.
Specify your
RR-Series unit.
Tell us the real and reactive power, the test power factor and the format you need, and we will return a full specification and quotation — typically within one working day.
